You may not be able to see all Reference Batches depending on the User's Permissions.
A Reference Batch remains OPENED until you change the Status button to CLOSED.
- When finished reviewing the charges and payments, the Reference Batch should be Closed.

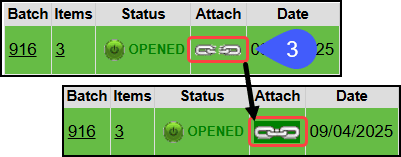

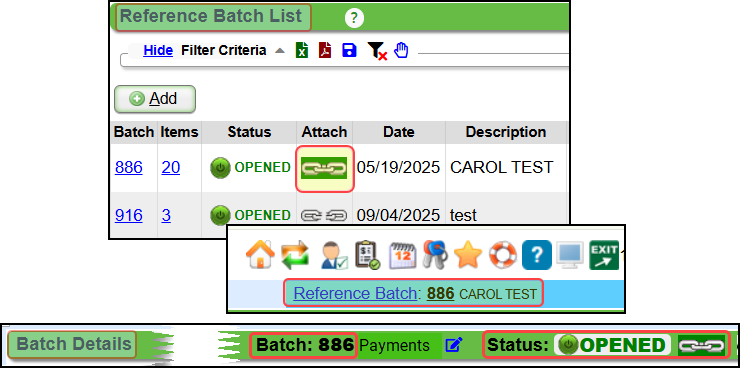

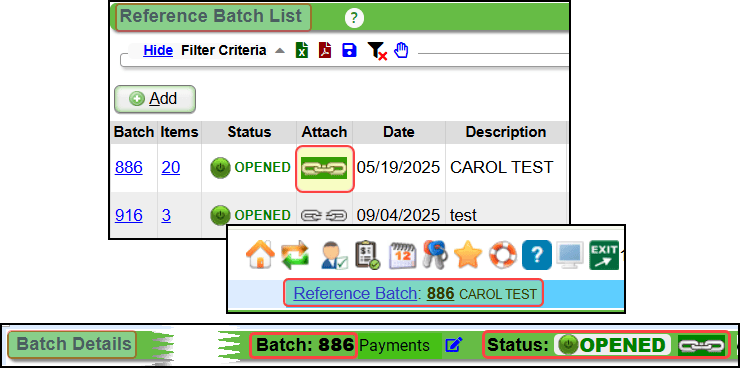

- The Chain link icon that is highlighted in green indicates that you are attached to this Batch.
- If it is not highlighted, it is unlinked.
- You can only be linked to one Reference Batch at a time.
Closing and Unlinking a Reference Batch

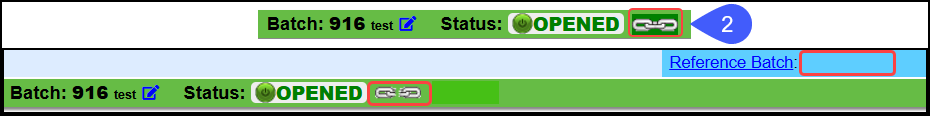

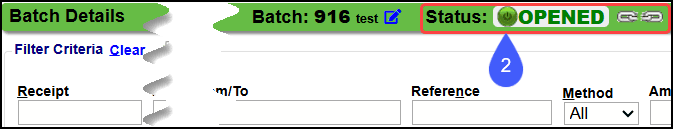

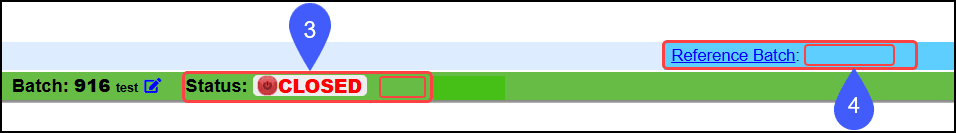

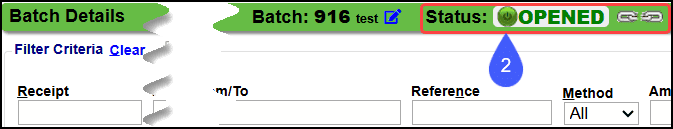

Close an Attached Reference Batch
- Select the Reference Batch number on the upper right.

- Close and Unattach: Select the Opened Green button.
- The Green button will change to a Closed Red Button.
- The Reference Batch will detach automatically, and the Chain icon disappears when the batch is CLOSED.

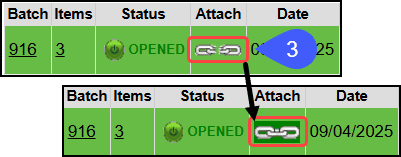

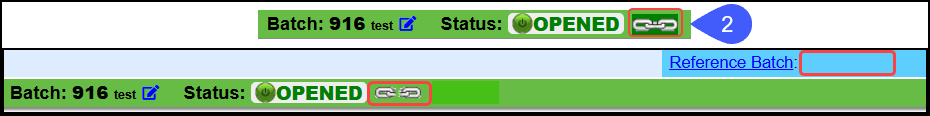

Unattach a Reference Batch without Closing
- Select the Reference Batch number on the upper right.

- Select the Green Chain link.
- The Chain link will no longer be highlighted.
- The Reference Batch will be unattached but not Closed.

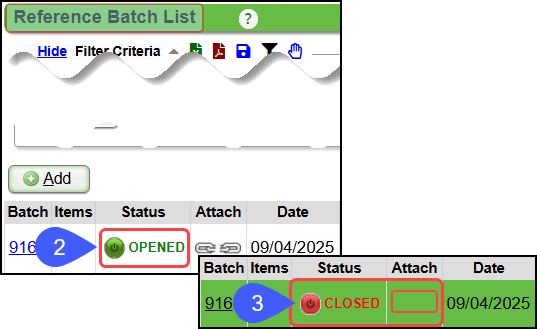

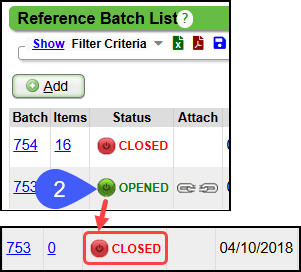

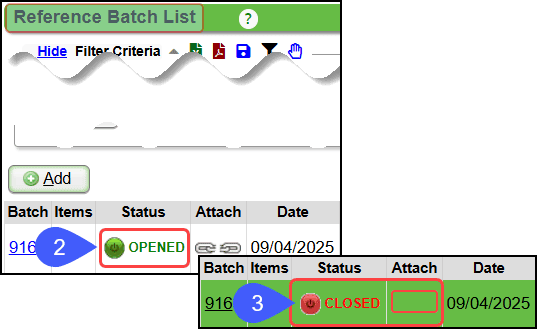

Close or Open an Unattached Reference Batch
- On the top right, select the Reference Batch link.

- On the Reference Batch, select the Green button to Close or the Red button to Open.
- Close: The Green button will change to a Red button with the Status of Closed.
- Open: The Red button will change to a Green button with the Status of Opened

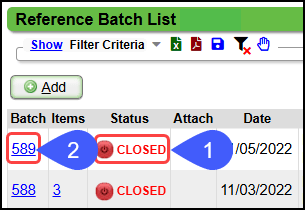

Archive a Reference Batch
A Closed Reference Batch can be Archived.
- Close the Reference Batch.
- Select the Reference Batch number.

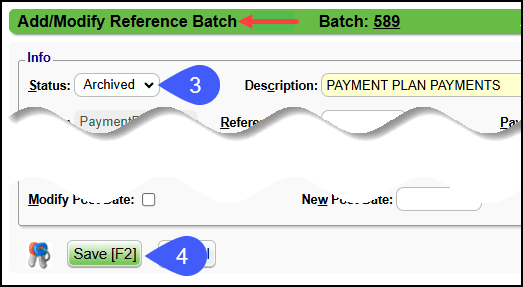

- On the Add/Modify Reference Batch screen, choose Archived for Batch Status and Save.
- View the Archived Reference Batch by choosing Archived for Status in the Filter Criteria.

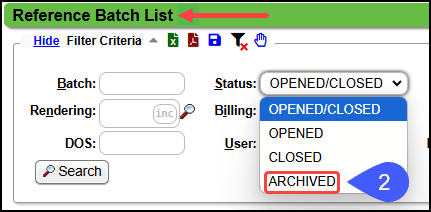

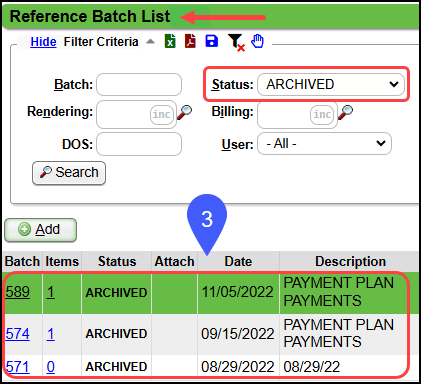

Find an Archived Reference Batch
- Select the Reference Batch link on the top right.

- On the Reference Batch List screen, choose Archived from the Status dropdown.

- A list of Archived Reference Batches will be listed on the Reference Batch List screen.

Add or Modify a Reference Batch
A Reference Batch can be added or modified on the Reference Batch List screen.
